Spray It Your Way: Can U-POL RAPTOR Turn a DIY Bed-Liner Job Into a Pro-Looking Finish?

A scratched, faded truck bed doesn't necessarily need an expensive trip to a professional coating shop. With the right preparation, a spray-on liner can add a durable textured finish while giving an older bed a completely different appearance.

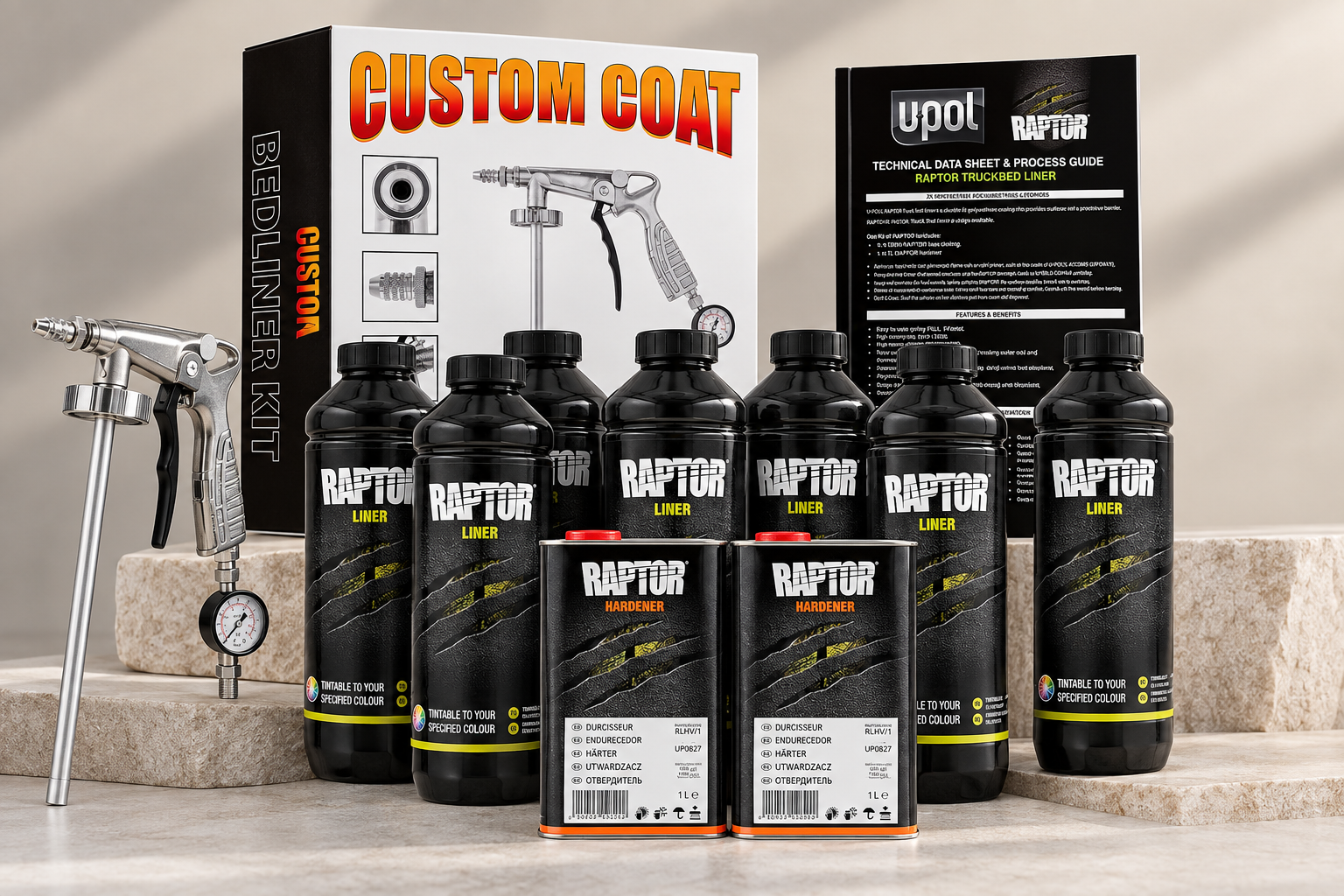

The CUSTOM SHOP U-POL RAPTOR Tintable Urethane Spray-On Truck Bed Liner Kit takes that DIY idea further by letting you choose the finished color instead of automatically settling for black.

This 8-quart package combines RAPTOR's two-component urethane coating system with a spray gun and regulator, making it a more complete starting point for a garage project.

But RAPTOR isn't a simple aerosol paint. The quality of the finished surface depends heavily on preparation, mixing, tint selection, air pressure, and application technique.

Tintable Is the Feature That Changes the Project

Standard black bed liner is practical, but it isn't always the look you want.

RAPTOR Tintable is designed so compatible color can be added before application. U-POL's technical guide allows tint at up to 10% depending on the color, although approximately 5% is typically enough to achieve good opacity.

U-POL also offers dedicated RAPTOR Color pouches. Its instructions call for one 1.5-fl-oz color pouch per bottle of Tintable RAPTOR, followed by the appropriate hardener.

That flexibility opens up considerably more possibilities than a conventional black truck-bed coating.

You can coordinate the liner with a vehicle color, create a contrasting bed, or use RAPTOR for custom automotive projects where appearance matters almost as much as protection.

The Job Starts Before You Touch the Spray Gun

The most important stage of a bed-liner project may actually happen before spraying begins.

A coating can only perform as well as the surface underneath it.

The truck bed needs to be cleaned thoroughly, with contaminants removed and the surface properly prepared so the coating can adhere. Rust, loose paint, and damaged areas also need appropriate attention rather than simply being buried under RAPTOR.

Masking deserves equal care.

Bed rails, tailgate hardware, lights, trim, surrounding body panels, and anything else that shouldn't receive textured coating should be protected before spraying begins.

This preparation is what separates a clean-looking DIY result from a messy one.

Mixing RAPTOR Is Surprisingly Straightforward

Once preparation is complete, the actual mixing system is designed to be relatively approachable.

RAPTOR Tintable uses a 3:1 coating-to-hardener ratio. With a U-POL application gun, the mixture is ready to spray without reducer.

The process is essentially fill, shake, and spray.

When using RAPTOR Color, U-POL instructs users to add the color pouch and 250 ml of RAPTOR hardener to a bottle of Tintable base, replace the cap, and shake for approximately two minutes.

There is one important clock running, however.

Once activated, RAPTOR has a 60-minute pot life at 68°F (20°C). U-POL recommends mixing only one bottle at a time and cleaning the application gun between mixes.

That approach prevents you from activating more material than you can realistically spray before it begins curing.

Texture Isn't Completely Fixed

One advantage of spraying RAPTOR yourself is the ability to influence how the finished coating looks.

With the dedicated application gun, factors such as air pressure, spraying distance, and technique affect the resulting texture.

That means the goal doesn't necessarily have to be an extremely coarse truck-bed surface.

U-POL also allows application through an HVLP gravity gun. For HVLP use, urethane reducer can be added to produce a finer texture and potentially increase coverage. The technical sheet permits up to 15% reducer for this application method and estimates roughly 25% additional coverage.

For a traditional textured bed-liner finish, however, the included application-gun setup is the more straightforward route.

Is Eight Quarts Enough for a Truck Bed?

Coverage always depends on surface size, coating thickness, application method, and texture.

As a useful reference point, U-POL states that its one-US-gallon RAPTOR kit can cover an average 8-foot truck bed.

An 8-quart setup therefore provides considerably more material than a single one-gallon kit, making it attractive for larger jobs, additional coats, or projects that extend beyond the bed itself.

RAPTOR isn't restricted to pickup beds either.

U-POL lists properly prepared steel, aluminum, wood, original paint, rigid plastic, fiberglass, concrete, and several other surfaces as compatible substrates.

That explains why the coating is frequently considered for bumpers, off-road components, trailers, utility vehicles, rocker areas, and custom restoration projects.

Don't Rush the Curing Stage

Finishing the final spray pass doesn't mean the truck is immediately ready for heavy work.

U-POL's technical information lists roughly one hour to touch, while light-duty service can require approximately 12 to 72 hours depending on coating thickness.

Giving the coating adequate curing time is particularly important before sliding heavy cargo, tools, or equipment across the surface.

Temperature and coating thickness can influence the process, so following the technical instructions for the conditions you're working in is preferable to relying on a fixed universal curing time.

Because this is a two-component urethane coating, appropriate PPE and ventilation are also essential. Users should follow the current safety data sheet and product instructions rather than treating RAPTOR like ordinary household spray paint.

U-POL RAPTOR Tintable Kit: Pros and Cons

Who Is This Kit Really Made For?

This kit makes the most sense for a hands-on truck owner, restorer, or DIY automotive enthusiast who already has access to an air compressor and is comfortable preparing surfaces.

The tintable formula is especially attractive when plain black bed liner would compromise the look of a custom build.

It may be excessive for someone who only needs to touch up a tiny damaged area. And if sanding, masking, mixing two-component coatings, and operating a spray gun sound intimidating, professional installation may be more convenient.

Final Coat: The Customization Is What Makes RAPTOR Interesting

RAPTOR's appeal isn't simply that it creates a tough textured coating.

The tintable formulation, adjustable spray texture, 3:1 mixing system, and broad substrate compatibility give DIY users considerably more creative control than a basic pre-colored liner.

The trade-off is that good results demand real preparation. Cleaning, sanding, masking, mixing, spraying, and curing all matter.

For someone prepared to put in that work, the CUSTOM SHOP U-POL RAPTOR 8-Quart Tintable Kit offers an appealing route to a customized protective finish without limiting the project to traditional black bed liner.

FAQs

1. Can U-POL RAPTOR Tintable be colored?
Yes, compatible tint can be added at up to 10%, with around 5% typically recommended for good opacity.

2. What is the RAPTOR mixing ratio?
RAPTOR Tintable uses a 3:1 ratio of coating to hardener.

3. How long does mixed RAPTOR remain usable?
Activated RAPTOR has a pot life of approximately 60 minutes at 68°F (20°C).

4. Can RAPTOR be used on surfaces besides truck beds?
Yes, U-POL lists multiple properly prepared substrates including steel, aluminum, wood, rigid plastic, fiberglass, and concrete.

5. Do you need a compressor to spray this RAPTOR setup?
Yes, the application gun is pneumatic and requires a suitable compressed-air supply for spraying.
